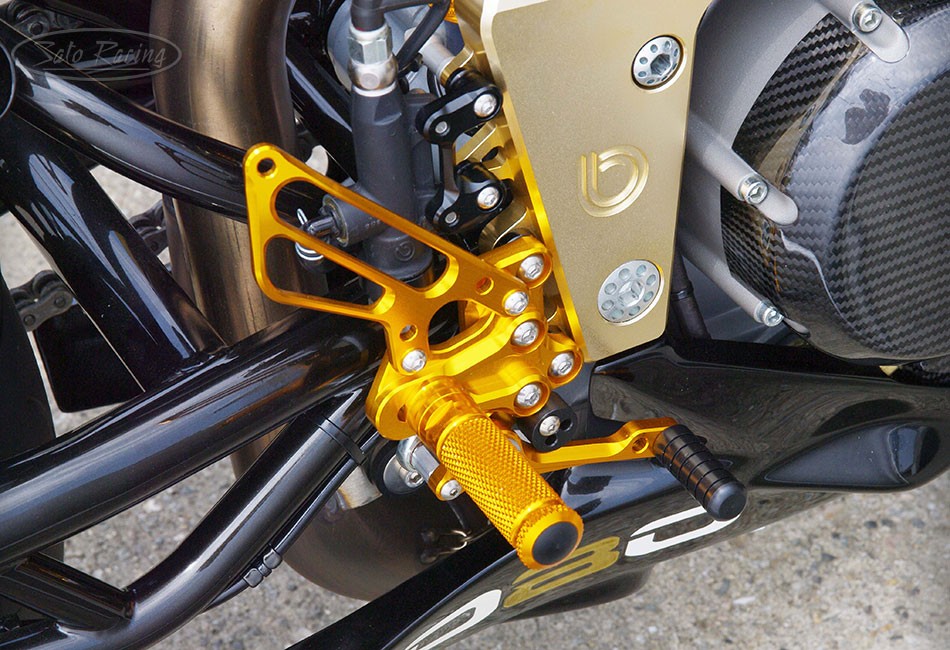

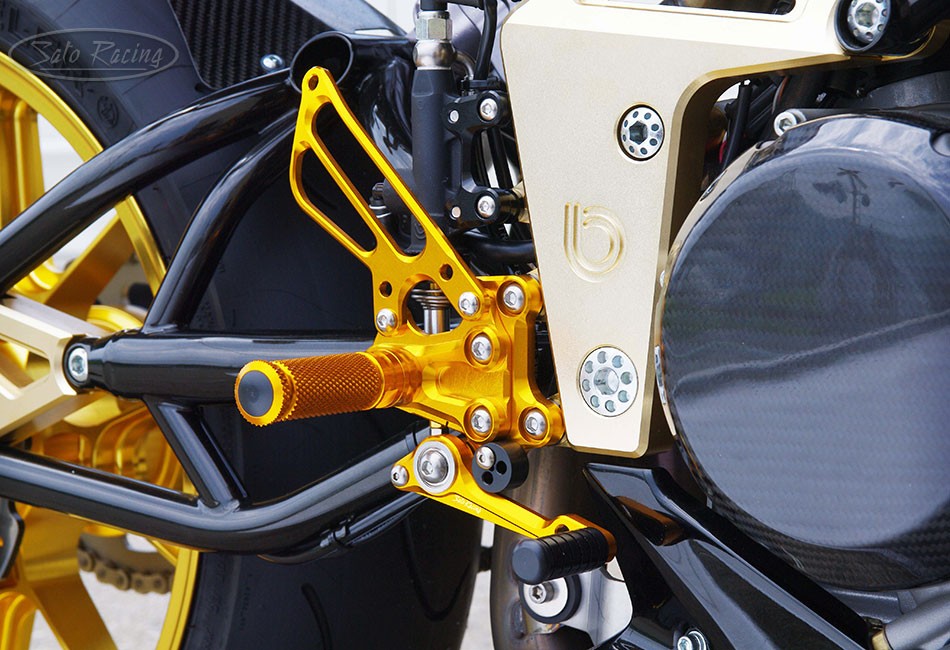

SATO RACING Rear Sets for Bimota DB6 series are made from high grade billet aluminum anodized in your choice of Black, Silver (clear metal), or vivid Gold finish. Modular design provides 6 adjustable positions in a useful range that can bring your feet up to 30mm higher compared to the stock rear sets. These Rear Sets can be used in stock shift pattern, or flip the included shift arm the opposite direction for GP-style reverse shifting pattern.

Features:

• CNC machined from high strength billet aluminum
• 4-way adjustable footpeg position
• Adjustable lever tips
• roller bearing lever pivots
• Available in Gold, Silver, and Black Anodizing
• Shift pattern can be reversed for GP shifting
• Not compatile with OEM brake light switch, hydraulic switch included
• Adjustable brake lever position

Footpeg Positions:

• 1: 10mm up, 10mm forward
• 2: 10mm up, 0mm forward
• 3: 20mm up, 5mm forward
• 4: 20mm up, 5mm back
• 5: 30mm up, 0mm forward
• 6: 30mm up, 10mm back

A word about gold anodizing:

Aluminum anodizing is an electrochemical process that increases the thickness of a passive, naturally occurring, protective aluminum oxide film. Without this process, regular aluminum will corrode and become weak. Anodizing provides protection from these effects. One known drawback of anodized GOLD is its tendency to fade with prolonged exposure to UV rays. Since this does not affect the primary purpose of anodizing - corrosion protection - Color fading is not covered by the Sato Racing warranty.
