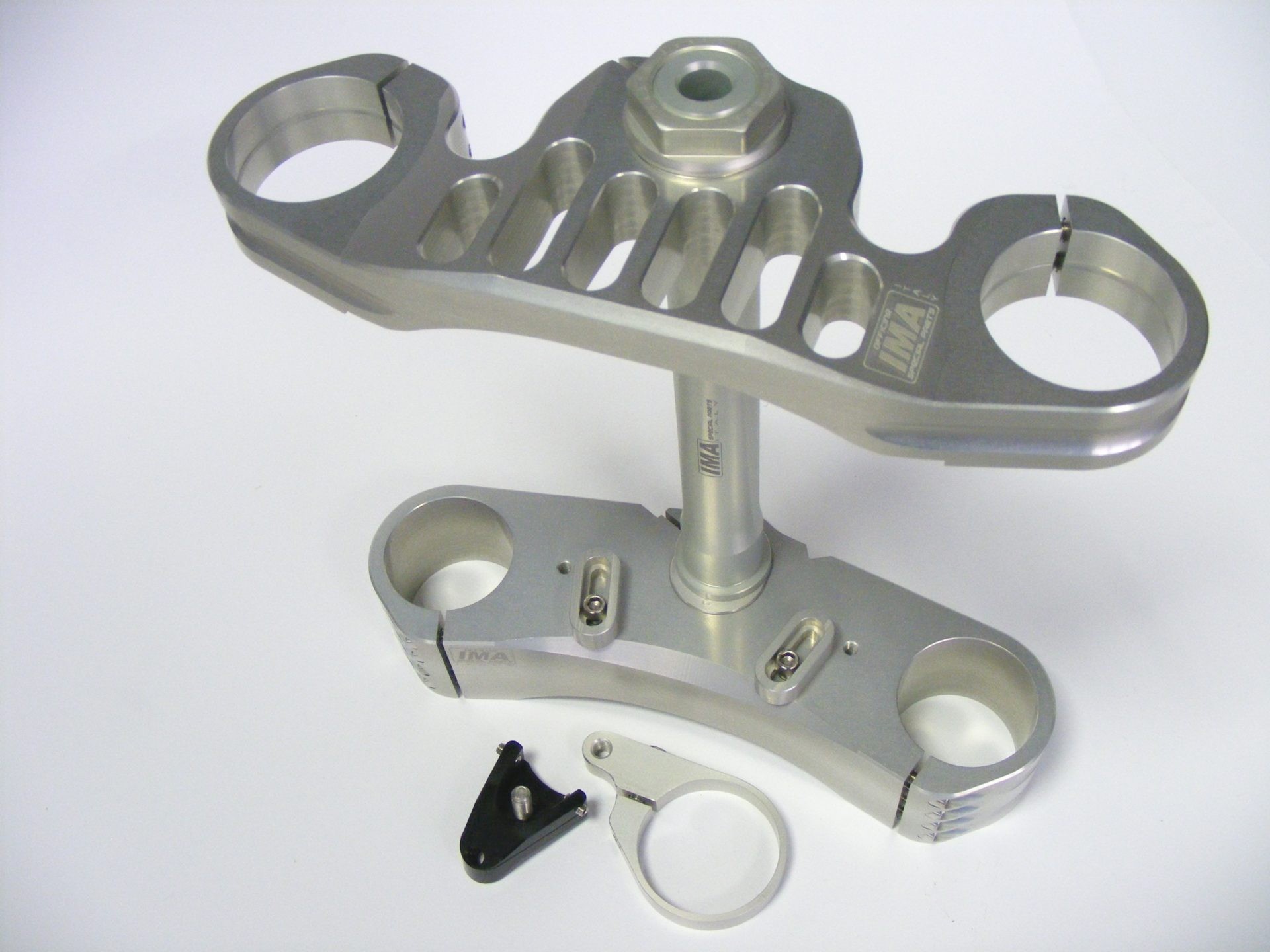

This triple clamp setup represents the top of IMA's front-ends range. Set of anodized triple clamps for modern superbikes, CNC-machined from billet of 7075 ERGAL aluminium. Developed from recent studies about the structural dynamics of current motorcycles, these triple clamps provide an excellent opportunity to upgrade the bike’s chassis.

The lower clamp features inverse ribs technology providing greater rigidity while maintaining low weight. The upper clamp features longitudinal slots creating grater flexibility while decreasing weight. The combination of a rigid lower triple clamp and a top triple clamp featuring engineered-flexibility effectively reduce chattering, following the technological trends of MotoGP and World SuperBike. Additionally, the triple clamp set features an adjustable eccentric at the steering stem, allowing for offset variations to suit a rider’s preferences.

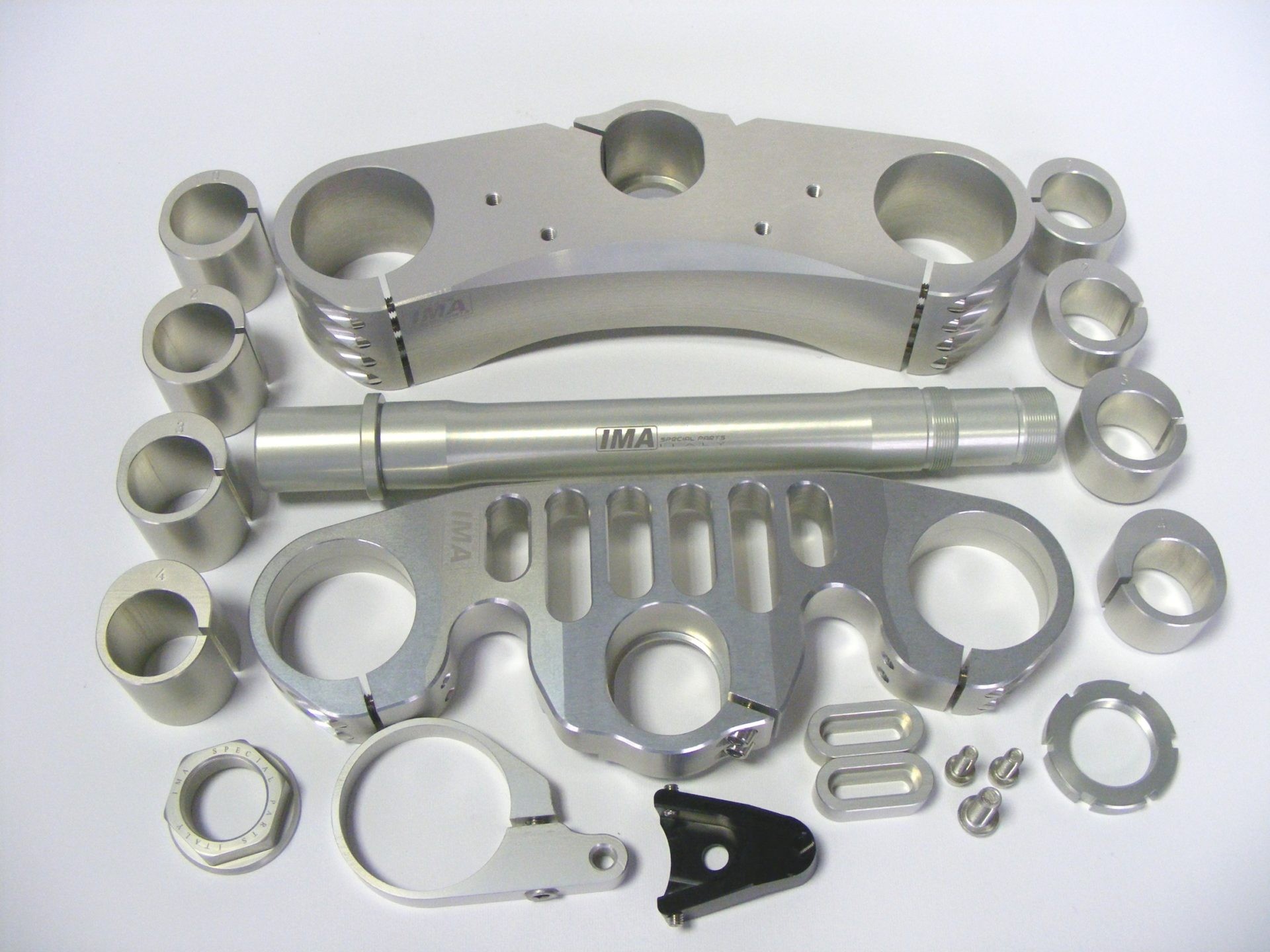

The MOD.4 evo kit is proposed in two different setups: Base Setup (with one bushings set  for a single fixed offset); Racing Setup (with all bushings for a complete offset adjustment).

Note: Use the dropdown boxes above to select your colors and configuration.

Material:      ERGAL 7075

Recommended torque for fork's bolts:  7.5Nm with greasing

Sequence:  Upper 1,2,1,2,1 Lower 1,2,3,4,1,2,3,4,1,2,3

Forks diameters:  50/54

Fork spacing:  205, 210 and 215

Offset: adjustable 25mm to 31mm

Optional Accessories: Tapered roller bearing: 35mm, Dust seal: 35mm
