AIM Sports EVO4s Datalogger with GS dash

AIM Sports EVO4s Datalogger with GS dash

$1,599.00

(Typically ships in 4-5 days. )

Previous

AIM Sports EVO4 Datalogger With MXL Dash

Previous

AIM Sports EVO5 Datalogger

AIM Sports EVO4s Datalogger with GS dash

     0 reviews  |  Write a review
Brands AIM Sports
Product Code: X61E4S1301
Availability: Typically ships in 4-5 days.
$1,599.00

Available Options


EVO4S is the evolution of the well known EVO4.


It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and withthe  new powerful Race Studio 3 software.


EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit.
And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.

-5 analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.
-2 speed inputs, which allow to monitor the different wheels behavior.
-1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).

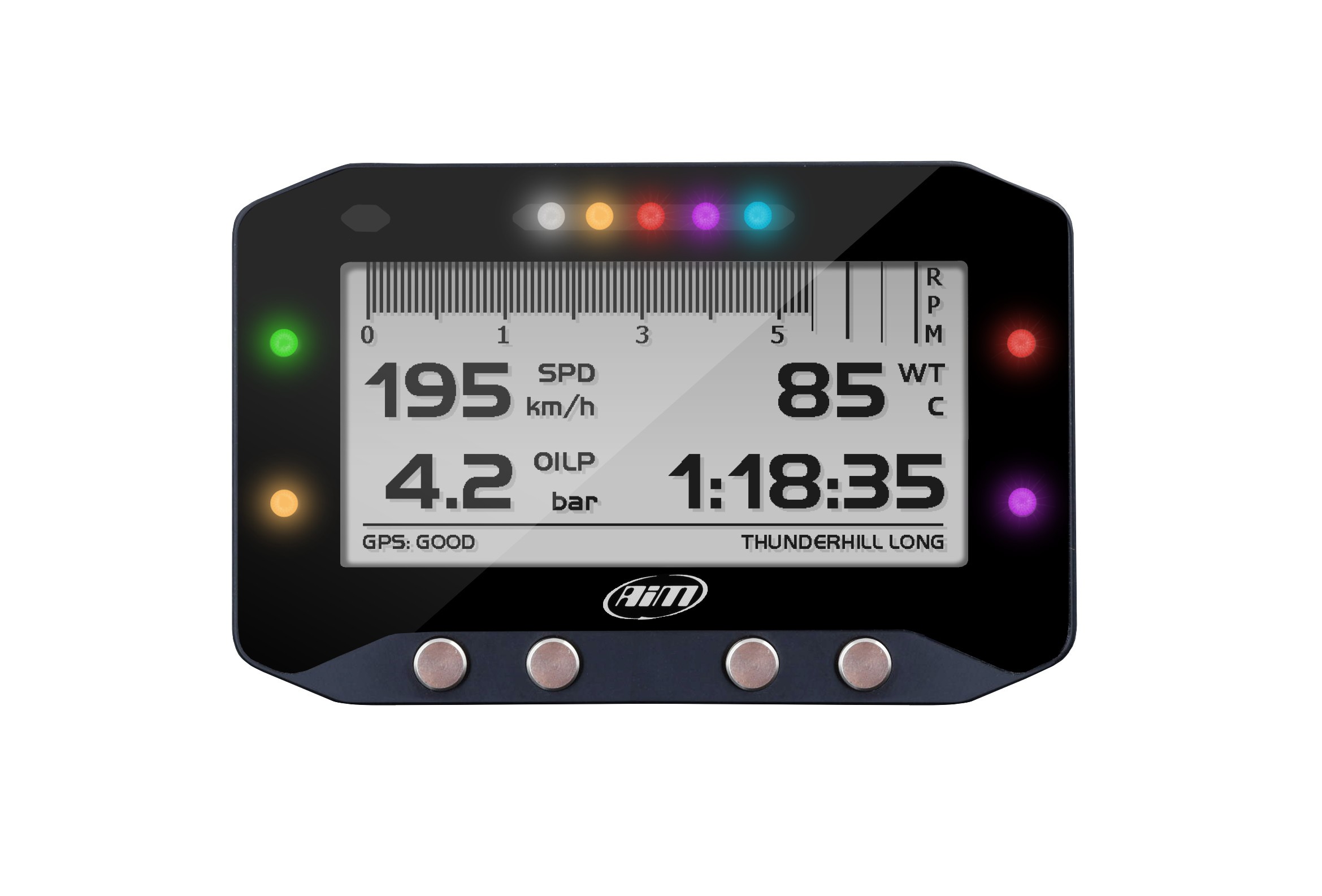

This kit comes with the AIM GS-Dash.

GS Dash Features:

Easy and immediate readability:


-In its compact structure, GS-Dash features a wide 268x128 pixel display to maximise readability. The screen can be backlighted in one of the seven available colors. The incorporated light sensor makes brightness and contrast ideal in all light conditions.

Up to 9 pages showing the data you wish, as you wish:
-GS-Dash swaps among pages showing lap times and data in a 100% customizable way: just choose your data and create your pages displaying up to 8 fields each. The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and three channels of your choice.

Lap times:


-You can visualize the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).

Fully configurable shift lights and alarm LEDs:


-GS-Dash features five individually configurable RGB LED shift lights: you will choose color and value thresholds for their activation. In addition, they can also be configured to show your best lap/split time or monitor RPM level.
-Alarms LEDs are configurable as well and can be managed in a very flexible way: you can choose the situation that generates the alarm, the LED behavior (blinking frequency and color) when the alarm appears and the conditions for its switch-off.

Recall your session highlights:


-A key-data summary is available at the end of each session: the three best laps of the session with their times, min/max speed and min/max RPMs. In the following pages you can also see a list of all  the laps of the session.

Technical Specs

LEDs: 1 system status
CAN connections: 2
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs
Expansion CAN connection: GPS, Channel Expansions, Thermocouple Expansions, Lambda Controllers, SmartyCam HD
Analog inputs: 5 fully configurable, max 1,000 Hz each
Digital inputs: 2 Speed inputs, lap signal, coil RPM input
Digital outputs: 1 (1 Amp max)
Accelerometer: Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory: 4 GB
Body: Anodized aluminum
Connectors: 13 Binder connectors
Dimensions: 130 x 35 x 46.6 mm
Weight: 330 g
Power consumption: 350 mA
Waterproof: IP65

TECHNICAL SPECIFICATIONS

Race Studio 3

Race Studio 3 is the heart of your MXG managing all your racing activities.

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Aim MXG Race Studio 3

MXG RS3 Analysis

Analysis

With Race Studio 3 you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

Download RS3

A wide range of data sources

EVO4S is the evolution of the well known EVO4. It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software.

EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.



ECU Cable

 Applications

BMW

BMW 15+

  • 2008-2015 S1000RR & HP4
  • 2015+ BMW S1000RR
DUCATI
  • 848/1098/1198 (All years)
  • 899/959/1199/1299 (All years)
  • 2009-2011 Hypermotard 796
  • 2010-2011 Multistrada 1200
HONDA
  • 2003-2015 CBR600RR
  • 2013-2015 CBR600RR w/ HRC ECU marked D11
  • 2004-2015 CBR1000RR
  • 2014-2015 CBR1000RR HRC
KAWASAKI
