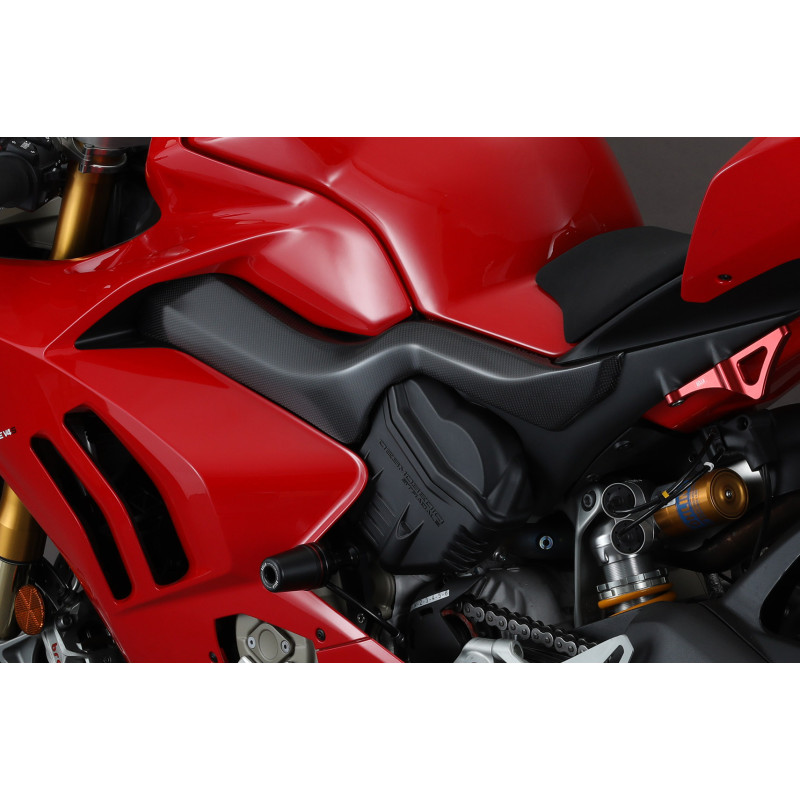

Aella Frame Cover Heat Shields - Ducati Panigale V4

     0 reviews  |  Write a review
Brands Aella
Product Code: AC-V4-003
Availability: Typically ships in 15 days
$754.95

AELLA products are crafted in Japan. Attention to detail and a history of using the best materials, make AELLA parts a great option for those that demand perfection.

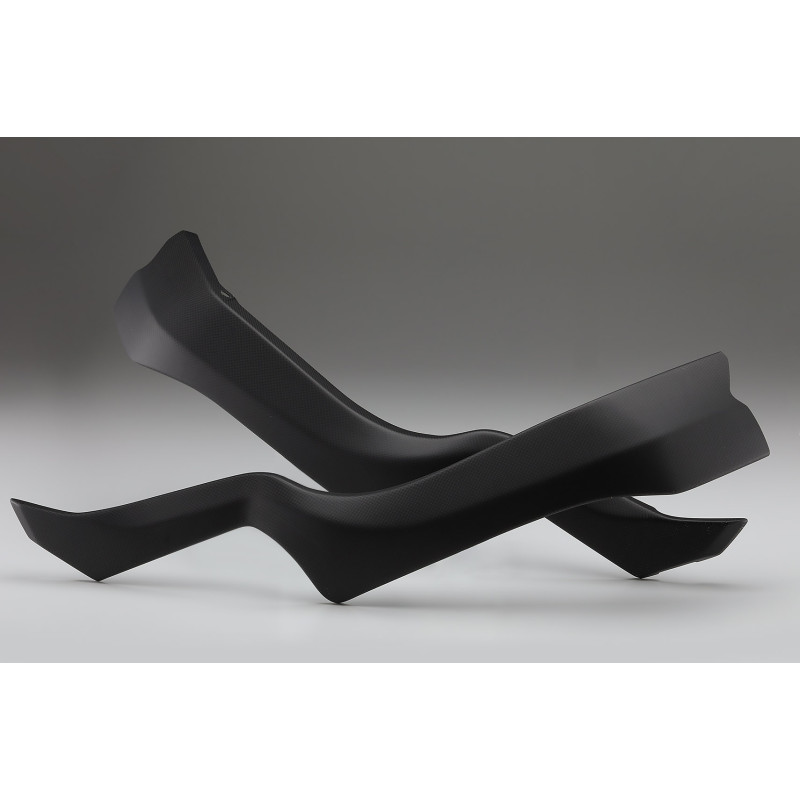

These are much larger than any one else's frame covers and can reduce the heat you feel by 12-15°C (21.6 - 27°F) AELLA is the only manufacturer that has a flowing, single design that covers not only the cover that covers the frame, but also the rear parts. It is a special part with a presence that is discreet without spoiling the beautiful cowl design of the V4. AELLA measured a maximum of 74°C on the left side and 68°C on the right side at the part where the knee and the frame contacted (measured with a non-contact type thermometer), but after installing these, the temperature dropped from -12°-15°C.  The shape of the cover is also easier to handle when braking (leg squeezing).  It also considers the hole position for heat dissipation. Wet carbon matte paint finish (glossy finish is available upon request).



Installation Notes:

  • Because there is almost no clearance between the OE cowl and the frame when attaching to the V4 R, it is necessary to trim the OE cowl where it interferes with these covers.
  • Fixed double-sided adhesive tape already attached.

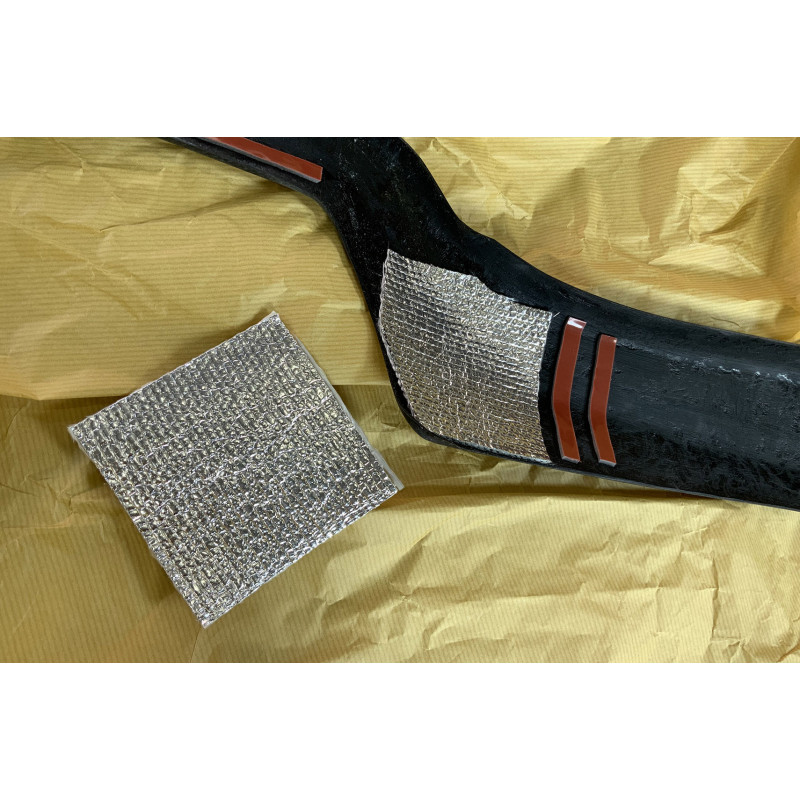

  • Thermal insulation sheet to be attached to the inner part (where the knee and frame are in contact) is included. The thermal insulation sheet is a 10cm square double-sided tape type. Can be cut freely with scissors.
  • NOTE: Regarding installation, the interference with this product will change depending on the mounting tolerance of the cowl of the vehicle.  Please keep in mind that the cowl paint may be damaged by vibrations etc. if used with interference.




  • 2018-2021 Ducati Panigale V4 / V4 R / Superleggera
