IMA Special Parts Model 4 EVO Ohlins FGR Superbike Fork Triple Clamp - Aprilia, BMW, Honda, Kawasaki, Suzuki, Yamaha
$890.00
(Typically ships in 2-3 days.)
IMA Special Parts Model 4 EVO Ohlins FGR Superbike Fork Triple Clamp - Aprilia, BMW, Honda, Kawasaki, Suzuki, Yamaha
Product Code: IMA Superbike fork triple
Availability: Typically ships in 2-3 days.

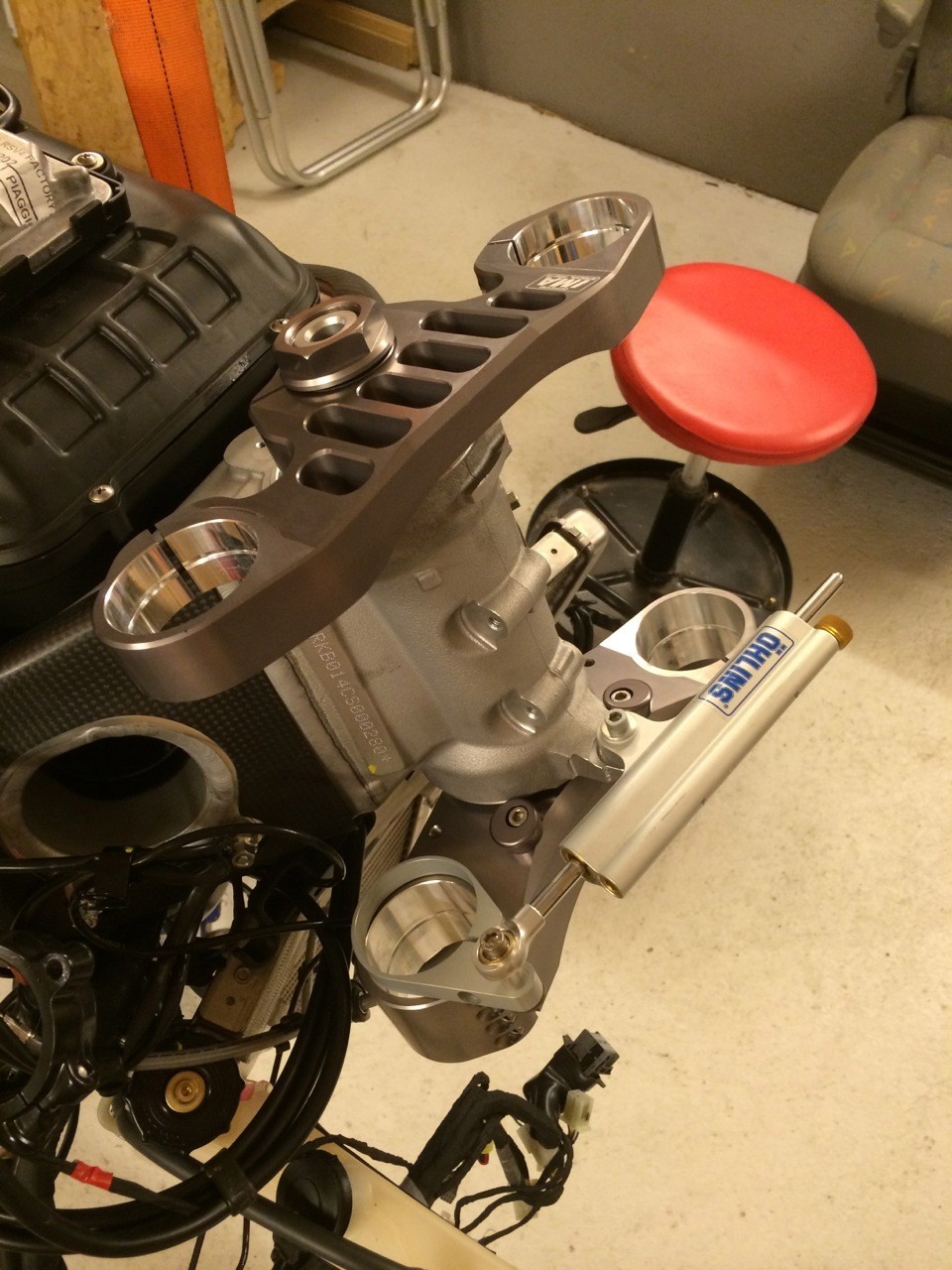

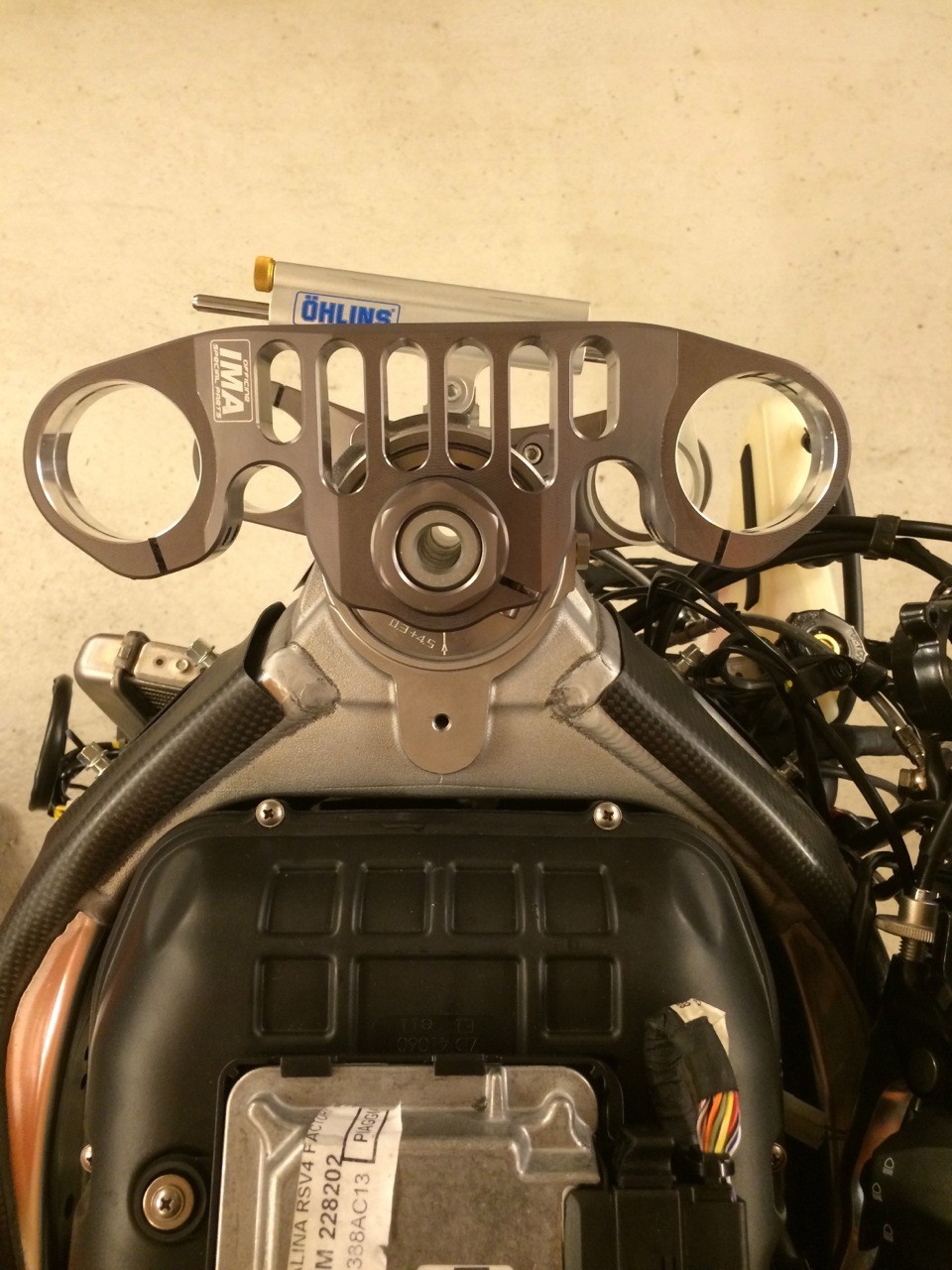

This triple clamp setup represents the top of IMA's front-ends range. Set of anodized triple clamps for modern superbikes, CNC-machined from billet of 7075 ERGAL aluminium. Developed from recent studies about the structural dynamics of current motorcycles, these triple clamps provide an excellent opportunity to upgrade the bike’s chassis.
The lower clamp features inverse ribs technology providing greater rigidity while maintaining low weight. The upper clamp features longitudinal slots creating grater flexibility while decreasing weight. The combination of a rigid lower triple clamp and a top triple clamp featuring engineered-flexibility effectively reduce chattering, following the technological trends of MotoGP and World SuperBike. Additionally, the triple clamp set features an adjustable eccentric at the steering stem, allowing for offset variations to suit a rider’s preferences.
The MOD.4 evo kit is proposed in two different setups: Base Setup (with one bushings set for a single fixed offset); Racing Setup (with all bushings for a complete offset adjustment).
Note: Use the dropdown boxes above to select your colors and configuration.
Material: ERGAL 7075
Recommended torque for fork's bolts: 7.5Nm with greasing
Sequence: Upper 1,2,1,2,1 Lower 1,2,3,4,1,2,3,4,1,2,3
Forks diameters: 52/58mm
Fork spacing: 205, 210 and 215
Offset: adjustable 25mm to 31mm
Optional Accessories: Tapered roller bearing: 35mm, Dust seal: 35mm
- 2009-2014 Aprilia RSV4
- 2009-2014 BMW S1000RR
- 2008-2011 Honda CBR1000RR
- 2012-2016 Honda CBR1000RR
- 2003-2004 Honda CBR600RR
- 2004-2005 Kawasaki Ninja ZX-10R
- 2006-2007 Kawasaki Ninja ZX-10R
- 2008-2010 Kawasaki Ninja ZX-10R
- 2011-2015 Kawasaki Ninja ZX-10R
- 2016-2020 Kawasaki Ninja ZX-10R / ZX-10RR
- 2003-2004 Suzuki GSX-R1000
- 2007-2008 Suzuki GSX-R1000
- 2009-2012 Suzuki GSX-R1000
- 2012-2016 Suzuki GSX-R1000
- 2001-2002 Suzuki GSX-R1000
- 2017-2024 Suzuki GSX-R1000 / 1000R
- 2005-2006 Suzuki GSX-R1000
- 2015-2019 Yamaha YZF-R1
- 2020-2024 Yamaha YZF-R1
- 2002-2003 Yamaha YZF-R1
- 2009-2014 Yamaha YZF-R1
- 2004-2006 Yamaha YZF-R1
- 2002-2003 Yamaha YZF-R1
- 2007-2008 Yamaha YZF-R1
- 2009-2014 Yamaha YZF-R1
- 2006-2007 Yamaha YZF-R6
- 2008-2016 Yamaha YZF-R6
