BSD switch pods are designed to give your racebike a MotoGP look and feel.  Sturdy billet aluminum construction resists crash damage far better than flimsy plastic OEM switch housings.  Switches are durable, waterproof, and easy to reach in the heat of a race.  OEM-style connectors make installation a truly 'plug and play' operation. BSD switch pods eliminate wiring and switches for lighting and horn functions, not needed on racebikes.

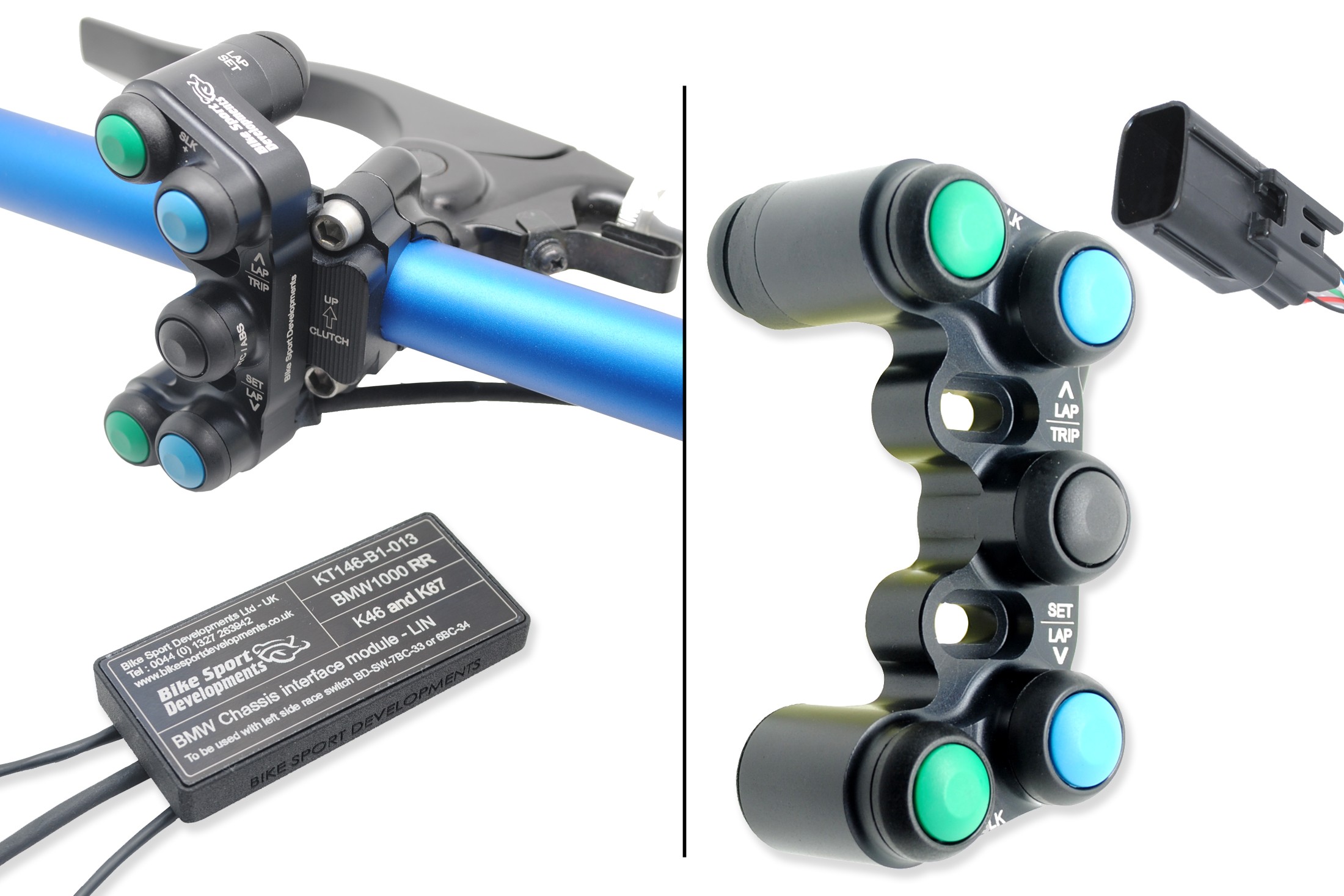

BMW 1000RR K46 - 2013 to 2018 (and 2019 US market models) - 6 way 'Type C' Clutch mount - race bike left handlebar switch assembly plus LIN / GPS interface module

This 6 button switch is designed for use on race/track bikes where the road functions such as lights, turn signals and horn are not needed.

Wiring - No modification of the bike wiring is necessary, this kit plugs directly into the connectors of the standard loom via our LIN BUS interface which is programmed to be 100% compatible with the existing bike electronics, so no diagnostic warning lights

GPS / lap timing – The standard switch provides a manual lap timer ‘start’ via the flash function, this is also re-created on our switch but we also provide an option to plug in a separate GPS lap timer KT170 which has large memory of built in track finish lines, as well as an easy to set ‘record’ button for creating new finish line positions. This is NOT supplied as part of this kit but is available as a separate 'plug and play' item. See accessories below

Mount – This assembly mounts directly onto the clutch post to save space on the handlebar for brake adjusters and thumb brakes

Functions available

• Lap timing SET / Flash
• Slick +
• Slick -
• Trip – Lap UP
• Trip – Lap DOWN
• ABS

Type 'C' switches mount directly onto the clutch post using the two original clamp screws and a new dedicated clamp.

The clamp is supplied free with each switch, please select correct clamp when ordering.

We have clamps for:
CL-A    32mm in-line bolt spacing - Standard
CL-B    30mm + 7mm offset bolt spacing
CL-F    30mm in-line as found on Accosato / Hel
BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump
CL-J    32mm + 6mm offset bolt spacing - Beringer

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

Construction:
Billet aluminium body
IP 67 waterproof switches with gold plated contacts
Raychem type 55 wire and DR25 sleeving
Plug and play wiring
Greater crash protection and electrical integrity
Switch may be replaced separately in the event of a crash as this is a 'plug in' component to the LIN module
Designed and made in the UK by Bike Sport Developments
